Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument

Product Categories
Chengdu Jiebo Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument

  • 1
  • 2
  • 3

Brand Name : Unistrong

Model Number : G970ii

Place of Origin : China

MOQ : 1 piece

Price : $3,050.00

Payment Terms : L/C, T/T

Supply Ability : 1 ~ 30 day

Delivery Time : 30 work day

Warranty : 3 years

Product name : RTK Unistrong G970ii

Channel : 800 Channels

DGNSS : ＜0.5m

Power : Internal battery

Internal UHF radio : 1W/2W（adjustable）

Removable battery : 24.5Wh(Two pieces)

Weight : 1.2kg

IMU : 60°

Protocol : SOUTH, Hi-target, Trimtalk, Transeot

Contact Now

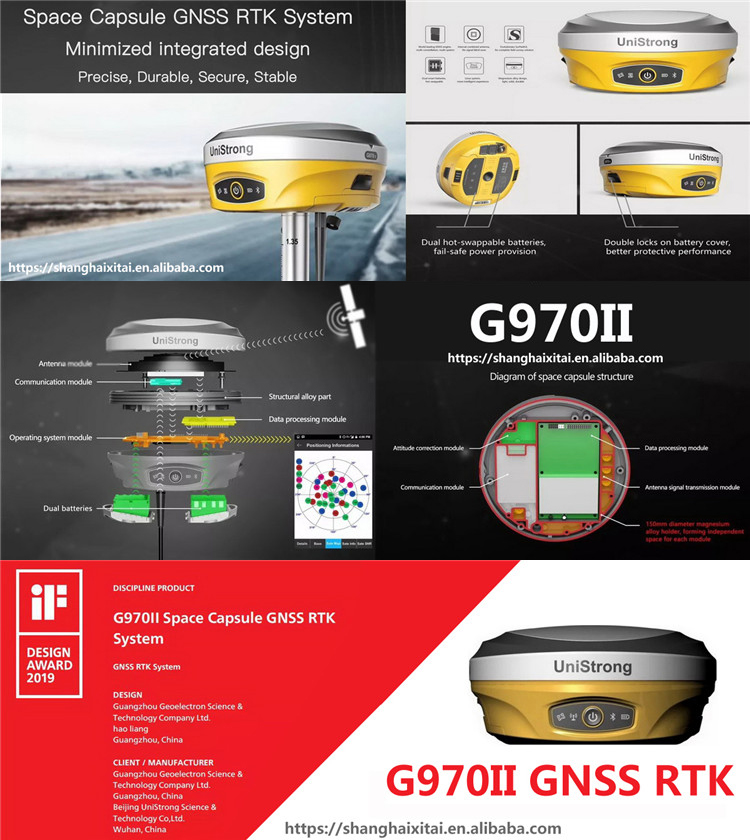

Unistrong G970II GPS Gnss Rtk Receiver Surveying Instrument

Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument

Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument

Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument

Technical Specificat
Product model G970II
GNSS Channels 800 channels
Satellite Signals GPS: L1C/A,L1C,L1P,L2C,L2P,L5;
GLONASS:G1P1,G1OC,G2OC,G2P2,G3OC
BDS: B1I, B2I, B3I, B1C, B2a, B2b, ACEBOC;
Galileo: E1BC, E5a, E5b, ALTBOC, E6
QZSS: L1C/A, L1C, L2C, L5, LEX;
SBAS: L1, L5;
IRNSS: L5;
L-Band

Accuracy		 Static H: 2.5mm±1ppm,V: 5mm±1ppm
RTK H: 8mm±1ppm,V: 15mm±1ppm
DGNSS <0.5m
ATLAS H10 8cm
Initialization
Time		 8s
Initialization
Reliable		 99.9%


System		 OS Linux
Memory 8GB,support expandable MicroSD
Wi-Fi 802.11 b/g/n
Bluetooth V2.1+EDR/V4.1Dual, Class2
E-Bubble Support
IMU Tilt Survey Fusion positioning, 400Hz refresh rate, 2cm (@60°Tilt degree)
Audio support TTS audio broadcast
Datalink UHF radio T/Rx Internal Radio, 1W/2W adjustable, 410-470MHz
Radio protocol Support GeoTalk, SATEL, PCC-GMSK, TrimTalk, TrimMark, South, Hi-Target
Network 4G-LTE, TE-SCDMA, CDMA(EVDO 2000), WCDMA, GSM(GPRS)
Reference
outputs		 RTCM2.3, RTCM3.2, CMR,CMR+,ROX
Physical Interface 1*TNC Radio Antenna, 1*5Pin(Power & RS232),1*7Pin (USB 81 RS232)
Button 1 Power Button
Indication Light 4 Indication Lights
Size Φ156mm×H76mm
Weight 1.2kg
Power supply Battery capacity 7.2V, 24.5Wh(standard two batteries)
Life Timer Static Survey: 15 hours, Rover RTK survey: 12h
External power
source		 DC 9-18V, with overvoltage protection
Environment Work Temperature -35ºC~+65ºC
Storage
Temperature		 -55ºC~+85ºC
Waterproof
& dustproof		 IP68
Humidity 100% anti-condensation

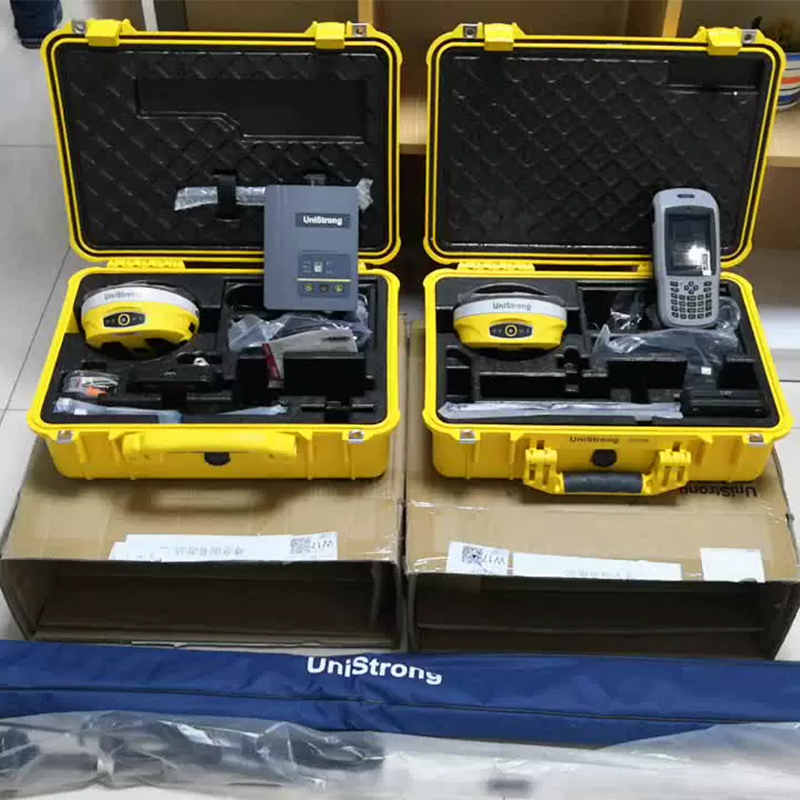

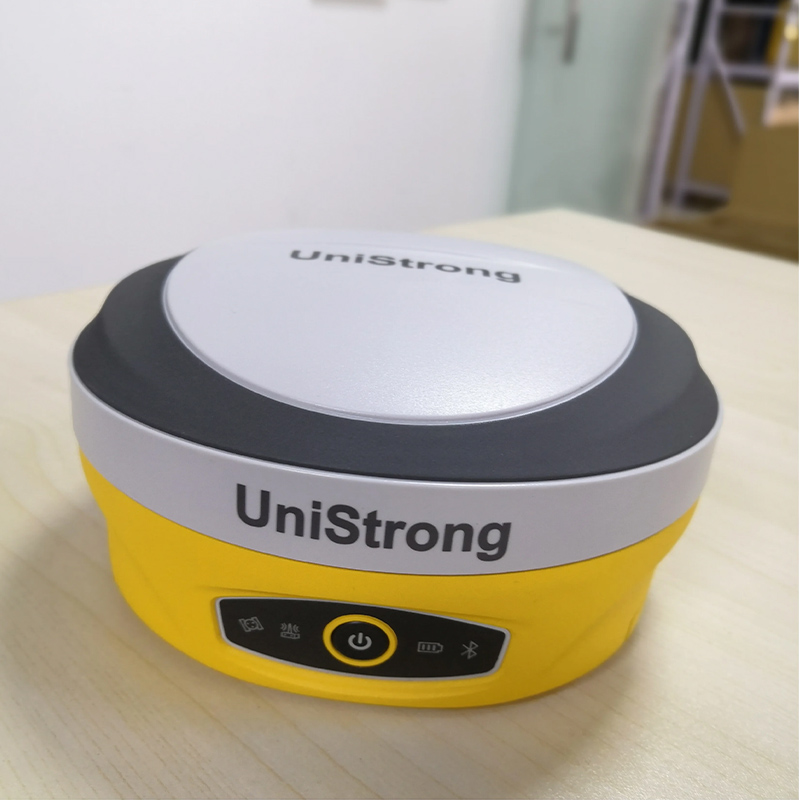

REAL PRODUCT PHOTO

Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument

Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument

Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying InstrumentUnistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument

Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying InstrumentUnistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying InstrumentUnistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying InstrumentUnistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument

Exhibition
Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument
Certifications
Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument
Company Profile
Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service
Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument
Packing & Delivery
Unistrong G970II GPS GNSS RTK Receiver Base And Rover Surveying Instrument
