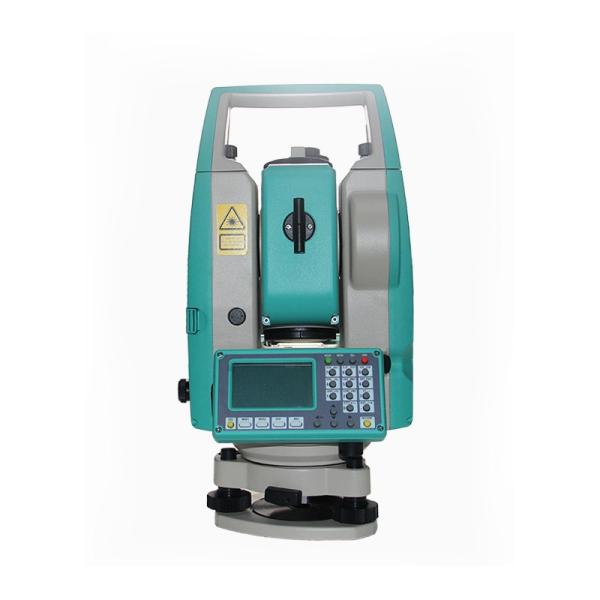

RUIDE Land Survey Robotic Total Station Instrument No Prism

Brand Name : Ruide

Model Number : RTS-822R10X

Place of Origin : China

MOQ : 1 set

Price : ＄1,500.00

Payment Terms : T/T, L/C

Delivery Time : 30 work day

Product Name : Robotic Total Station

Customized support : OEM, ODM, OBM

Model : RIS

Magnification : 30X

Reflectorless : 1000m

Single Prism : 5000m

Display : LCD Display

Accuracy: Non Prism : 2+2ppm

Accuracy : 2"

angle measurement : Absolute encoding angle measurement

Operating time : 15 hour

Waterproof and dustproof : IP65

Contact Now

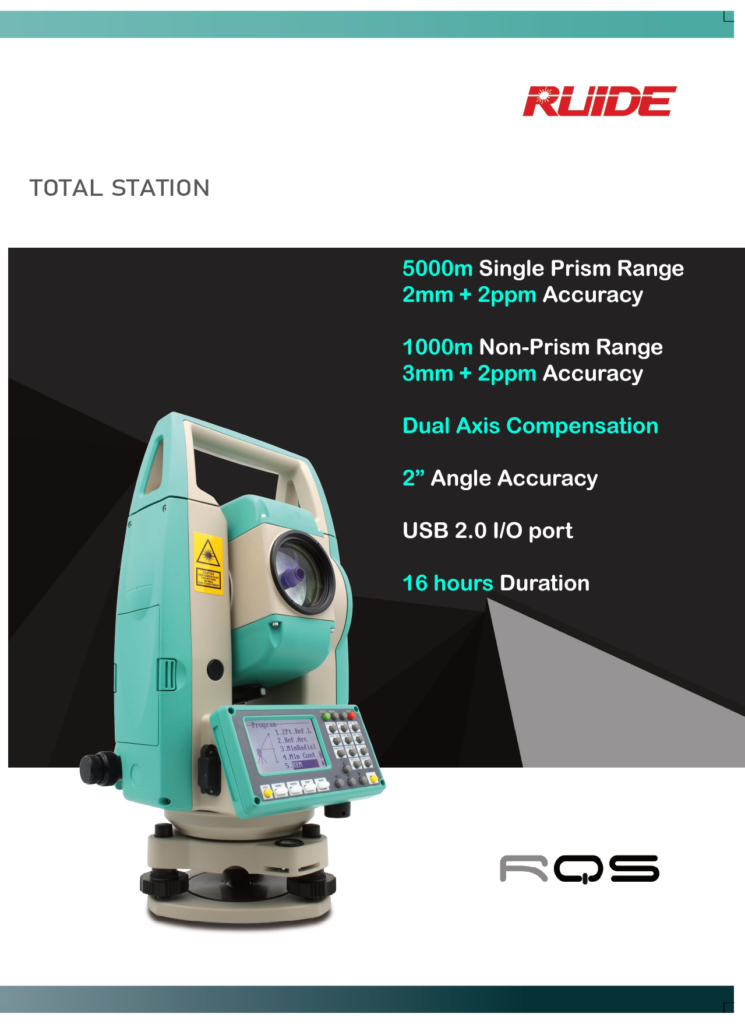

RUIDE RQS/RTS-822R10X total station no-prism 1000m and 2'' accuracy for land surveying

Specification

Ruide Total Station
Model RQS
TELESCOPE
Length 154mm
Objective Lens Diameter Telescope:45mm Distance Meter: 50mm
Magnification 30X
Image Erect
Field of View 1°30’
Resolving Power 3"
Min. Focus 1.0m
DISTANCE MEASUREMENT
Single Prism 5000m*1
Non-prism 600m*2
Accury -Prism Mode ±(2mm+2ppm x D) m.s.e*3
-Non-prism Mode ±(3mm+2ppm x D) m.s.e*3
Measuring Time Fine:0.6s,Normal: 0.5s
Meteorologic Correction ATMOSense (Auto Sensing)
Prism Constant Manuual Input
ANGLE MEASUREMENT
Method Absolute Encoding
Detecting System H: 2 sides,V:2 sides
Min. Reading 1"/5"
Accuracy 2"
Diamater of Circle 79mm
Vertical Angle 0° Zenith 0°/ Horizontal: 0°
Unit 360°/400gon/6400mil

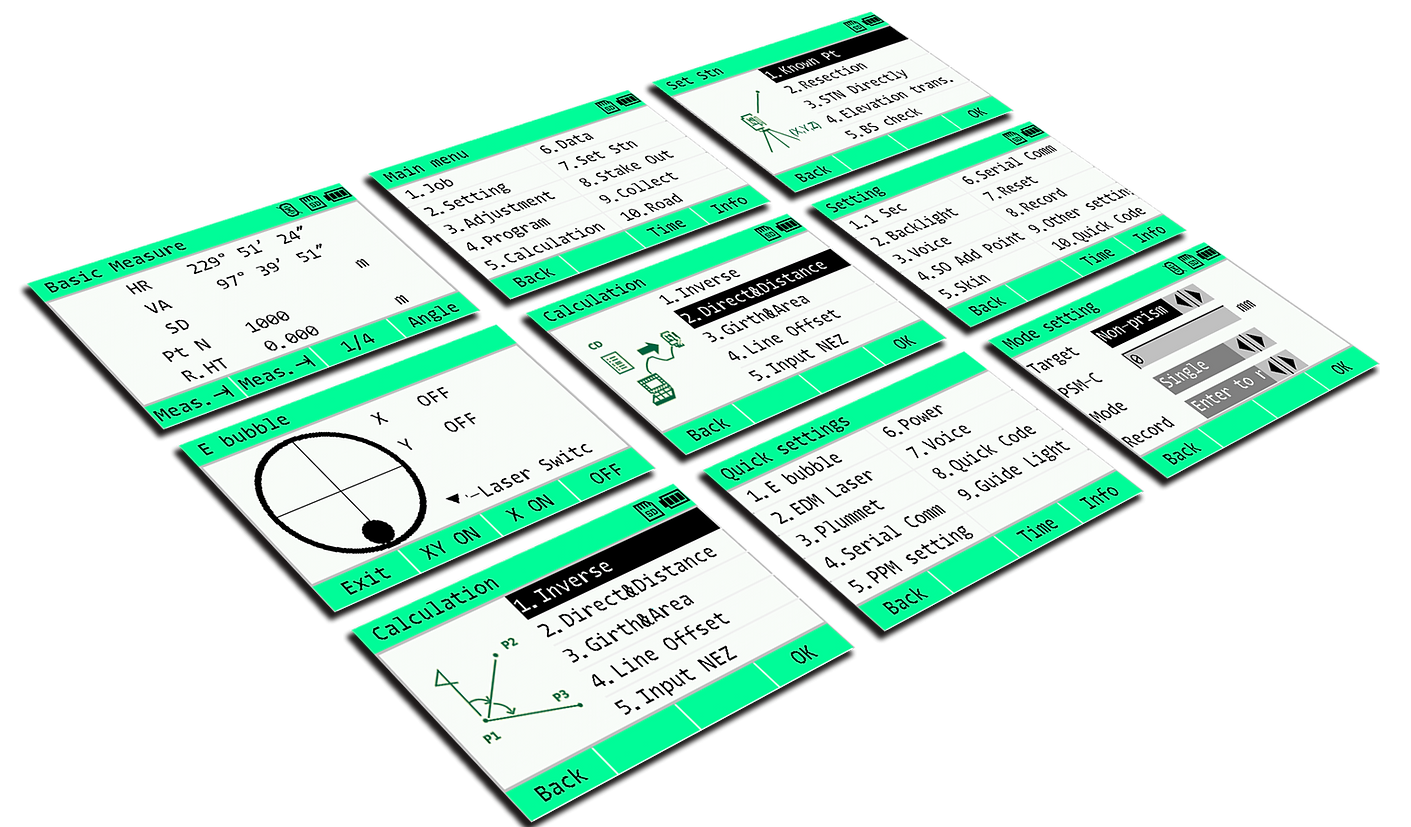

DISPLAY
Display Unit Graphic LCD 160 x 90 Dots with White Backlight
No. of Unit 2 sides
Keyboard Alphanumeric Key
TILT CORRECTION
Tilt Sensor Dual Axis
Method Liquid Electric
Range ±4'
Setting Unit 1″
LEVEL SENSITIVITY
Plate Level 30″/2mm
Circular Level 8'/2mm
OPTICAL PLUMMET (OPTIONAL:INTERNAL LASER PLUMMET)
Image Erect
Magnification 3X
Focusing Range 0.3m~∞
Field of View 5°
DATA STORAGE & INTERFACE
Internal Memory >10,000 points or >20,000 coordinates
Data Interface RS 232/SD-card/Mini-USB
GENERAL
Guide Light No
Weight & Dimension 5.4kg,340mm(H) x 160mm(W) x 150mm(L)
Working Temperature -20℃~+50℃
Batter Type Rechargeable Li-on Battery 3000mAh
Batter Voltage DC 7.4V
Working Time 16h

RUIDE Land Survey Robotic Total Station Instrument No PrismRUIDE Land Survey Robotic Total Station Instrument No PrismRUIDE Land Survey Robotic Total Station Instrument No PrismRUIDE Land Survey Robotic Total Station Instrument No Prism


Why Choose Us

RUIDE Land Survey Robotic Total Station Instrument No Prism
GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike
Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.
RUIDE Land Survey Robotic Total Station Instrument No Prism
Certifications
RUIDE Land Survey Robotic Total Station Instrument No Prism
RUIDE Land Survey Robotic Total Station Instrument No Prism
Company Profile
RUIDE Land Survey Robotic Total Station Instrument No Prism

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service
RUIDE Land Survey Robotic Total Station Instrument No Prism
Packing & Delivery
RUIDE Land Survey Robotic Total Station Instrument No Prism
